Bosun Garvey
Images: 1, 2

20-foot tape-seam sheet plywood outboard utility or workboat

LOA: 20 ft. - 2 in. (6.1 m)
LWL: 16 ft. - 5 in. (5.0 m)
Beam: 6 ft. - 3 in. (1.9 m)
Draft Hull: 0 ft. - 9 in. (23 cm)
Draft Propeller: 23 in. (58 cm)
Displacement: 2,400 lb. (1090 kg)
Power: 40 to 150 hp outboard
Speed with 40 hp: cruise 14 to 17 knots, 21 knots max
Speed with 60 hp: cruise 17 to 20 knots, 26 knots max
Speed with 120 hp: cruise 18 to 22 knots, 35 knots max
Speed with 150 hp: cruise 22 to 28 knots, 40 knots max

Offshore Skiff
Images: 1, 2, 3, 4

28-foot tape-seam sheet plywood outboard cruiser or workboat

LOA: 28 ft. - 3 in. (8.6 m)
LWL: 24 ft. - 0 in. (7.3 m)
Beam: 8 ft. - 0 in. (2.4 m)
Draft Hull: 11 in. (28 cm)
Draft Propeller: 26 in.
Displacement: 5,200 lb. (66 cm)
Headroom: 6 ft. - 4 in. (1.93 m)
Gasoline: 120 gal. (454 l)
Water: 25 gal. (95 l)
Power: 75- to 150-hp outboard
Speed with 75 hp: 16 knots cruise, 19 knots max
Speed with 150 hp: 23 knots cruise, 26 knots max

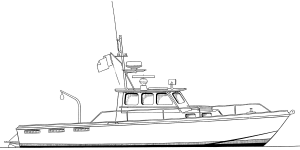

Pitan
Images: 1, 2

42-foot, triple-jet-drive, patrol/supply boat

LOA: 42 ft. - 0 in. (12.8 m)
LWL: 37 ft. - 3 in. (11.3 m)
Beam: 10 ft. - 7 in. (3.2 m)
Draft: 3 ft. - 3 in. (1.0 m)
Displacement.: 10.74 tons
Power: (3) Cat 3208TA, 425 hp each
Speed: 17 to 24 knot cruise, 35 knots max

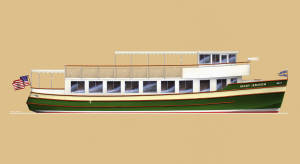

Mary Jemison
Images: 1, 2

66-foot steel, 140-passenger dinner-cruise boat, designed to meet 16-foot bridge clearance restriction

LOA: 64 ft. - 10 in. (19.8 m)
LWL: 60 ft. - 3 in. (18.4 m)
Beam: 23 ft. - 3 in. (7.0 m)
Draft: 6 ft. - 6 in. (1.9 m)
Displacement: 74.5 tons
Gross Tons: 91.7
Net Tons: 73.4
Power: (1) Cat 3196, 385 hp
Speed: 9 knots cruise, 10.8 knots max

Sapphire
Images: 1, 2

72-foot Charter schooner, Coast Guard certified for 49 passengers ocean, yet drawing just 4 feet 2 inches

Length Extreme 81 ft. - 8 in. (24.88 m)
LOA: 71 ft. - 7 in. (21.82 m)
LOD: 64 ft. - 0 in. (19.51 m)
DWL: 54 ft. - 5 in. (16.58 m)
Beam: 17 ft. - 8 in. (5.38 m)
Draft: (CB up) 4 ft. - 2 in. (1.27 m)
Draft: (CB down) 12 ft. - 8 in. (3.85 m)
Displacement: 39 tons
Water Tanks: 500 gal. (1892 l)
Sail Area: 2,094 sq. ft. (194 sq.m)
Area 100%: 315 sq. ft. (96 sq.m)
Bridge Clearance: 64 ft. - 0 in. (19.5 m)
Ballast: 18 tons
SA/Disp: 17
Ballast/Displacement: 46%
Disp/WL: 237
WL/Beam: 3.45
Gross Reg. Tons: 23.5 tons
Diesel Tanks: 200 gal. (757 l)

Vieques/Culebra Ferry
Images: 1, 2, 3, 4

74-foot, 28-knots, aluminum 149-passenger offshore ferry

LOA: 73 ft. - 8 in. (22.4 m)
DWL: 66 ft. - 4 in. (20.2 m)
Draft: 8 ft. - 6 in. (2.6 m)
Beam: 22 ft. - 3 in. (6.8 m)
Displacement: 77.1 tons
Gross tons: 95.8
Net Tons 76.6
Power: (2) Detroit Diesel/MAN, 2,330 hp each
Gear: (2) Twin Disc MG-698RV, 3.04:1
Prop Dia: 4 ft. - 6 in.
Speed: 22 to 24 knots cruise, 28 knots max
